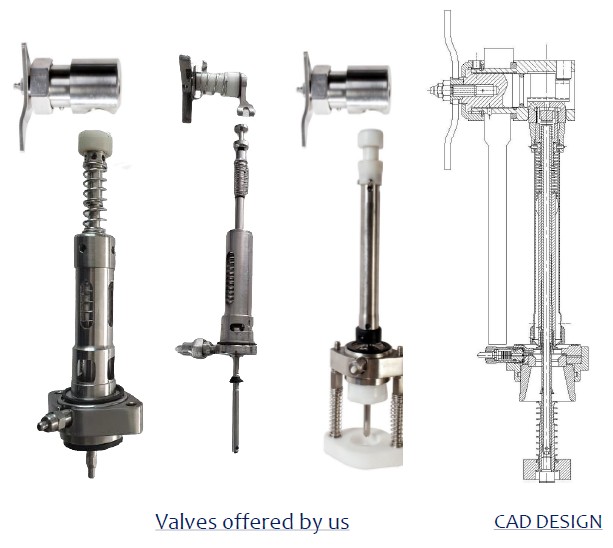

CSD (Carbonated) Filling Valves
We are one of the leading designers and manufacturers of all kinds of engineered filling valves, delivering optimum flow for both new and existing machinery.
We are one of the leading designers and manufacturers of all kinds of engineered filling valves, delivering optimum flow for both new and existing machinery.
Threaded Vent Tube Design
Application: Mostly used in glass filling machines.
A highly cost-effective solution for standard bottling requirements.
Flow from this valve is lower compared to our advanced collet and push-type designs.

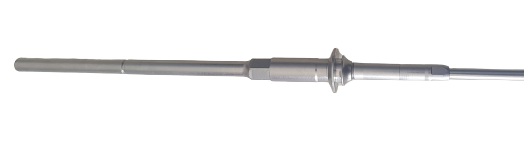

Stem With Collet Type Vent Tube
Application: Mostly used in PET machines.
Slight changes in the centering assembly can affect the collet, resulting in bending of vent tubes and potential stem thread damage.

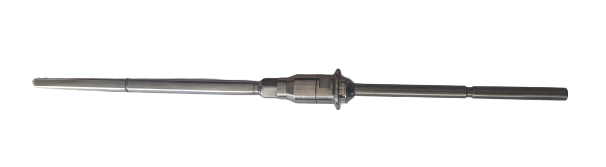

Threadless Stem & Vent Tube
Our most advanced design. Changeovers are performed simply by pushing the vent tube into the stem.
We can modify any collet type valve of any manufacturer to our highly efficient push-type design. By replacing only the valve stem and vent tube and retaining your existing parts, we offer a cost-effective performance upgrade.
Check out our project where we successfully converted existing threaded and collet vent tubes into push-type vent tubes at Coca-Cola plants.
